Choosing Between PWM And MPPT Controllers in Solar Lighting

Solar lighting systems rely heavily on the choice between a PWM controller and an MPPT solar controoler. For small, budget-focused setups in sunny climates, a PWM solar controller offers lower upfront costs and simplicity. However, larger or more complex systems benefit from the higher efficiency and adaptability of MPPT, often delivering 20-30% more energy—especially in cold or variable weather.

Key decision factors include:

• Energy harvest efficiency

• Flexibility for system expansion

• Budget constraints

Key Takeaways

• PWM controllers suit small, simple solar lighting systems with lower costs and easy maintenance, especially in warm, sunny climates.

• MPPT controllers offer up to 30% higher efficiency, making them ideal for medium to large systems and variable or cold weather conditions.

• Choosing the right controller depends on system size, budget, panel and battery voltage compatibility, and climate conditions.

• MPPT controllers provide better long-term value through improved energy harvest, system flexibility, and battery life despite higher upfront costs.

• Avoid common mistakes like mismatching voltages or overloading controllers to ensure safe, efficient, and reliable solar lighting performance.

Overview

PWM Controller Basics

A PWM controller manages the charging process by rapidly switching the connection between the solar panel and the battery on and off. This method pulls the panel voltage down to match the battery voltage, which can limit efficiency, especially when the panel voltage is higher than the battery voltage. The PWM controller does not search for the maximum power point. Instead, it increases current until the battery voltage is reached, which may result in energy loss.

Key features of PWM controllers include:

• Simple design and operation

• Lower cost and smaller size

• High efficiency in low-power or small-scale solar lighting systems

• Direct connection between panel and battery voltage, which restricts system flexibility

Recent advancements have introduced smart controls, such as motion sensors and timers, to improve adaptability and energy efficiency. However, the core operation of the PWM controller remains unchanged. This type of controller works best in sunny, warm climates and with systems where the solar panel voltage closely matches the battery voltage.

MPPT Controller Basics

MPPT controllers use intelligent algorithms to continuously adjust the current and voltage drawn from the solar panels. This process allows the controller to find and operate at the maximum power point, maximizing energy harvest. Unlike the PWM controller, the MPPT controller uses a buck converter to convert excess voltage into additional current, resulting in higher charging power.

A comparison of key aspects:

MPPT controllers excel in variable or cold climates, where panel voltage often exceeds battery voltage. They also support overpanelling, which means the system can use more solar capacity than the controller’s rating to maximize output during low light. Modern MPPT controllers feature rapid adjustment technologies and integration with hybrid inverters, making them suitable for scalable and adaptable solar lighting systems.

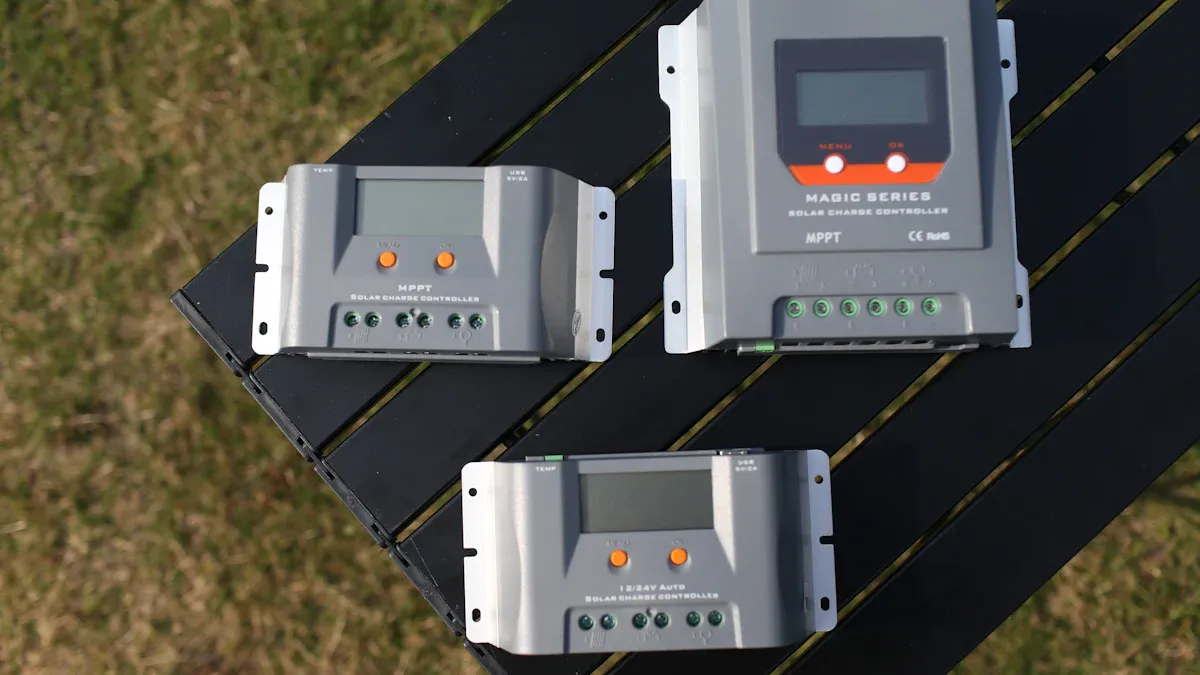

Comparison

Image Source: unsplash

Efficiency

Efficiency stands as a primary factor when selecting a solar charge controller. A PWM controller typically achieves an average conversion efficiency of around 75% in solar lighting applications. This efficiency level works well for small-scale systems where the solar panel voltage closely matches the battery voltage. However, when the panel voltage exceeds the battery voltage, the PWM controller cannot utilize the extra energy, resulting in power loss.

MPPT controllers, on the other hand, use advanced algorithms to track the maximum power point of the solar array. Top-tier MPPT controllers maintain efficiencies between 95% and 99%, even as sunlight and temperature fluctuate. This high efficiency allows MPPT controllers to extract more energy from the same solar panels, especially in variable or cold climates. The table below summarizes the efficiency ranges for MPPT controllers:

Note: MPPT controllers consistently outperform PWM controllers in energy harvest, especially when environmental conditions are less than ideal.

Cost

Cost considerations influence the choice between PWM and MPPT controllers. The PWM controller features a simple design and fewer components, resulting in a lower upfront cost. This makes it a popular choice for small or budget-constrained solar lighting systems. Maintenance costs also remain low due to the basic electronics and minimal servicing needs.

MPPT controllers require a higher initial investment because of their advanced technology and complex control circuits. Maintenance costs can be higher, as these controllers may need regular inspections and occasional repairs. Despite the increased upfront and maintenance expenses, MPPT controllers offer greater long-term value. Their superior efficiency leads to better energy harvesting, reduced battery wear, and improved scalability, which can offset the initial costs over time.

• PWM controllers have a lower upfront cost, making them suitable for small or budget-constrained systems.

• MPPT controllers require a higher initial investment due to their advanced technology.

• Over the long term, MPPT controllers provide better energy harvesting and system scalability, resulting in improved return on investment despite higher upfront costs.

• PWM controllers have simpler electronics and a basic design, resulting in minimal maintenance requirements and lower maintenance costs.

• MPPT controllers use more advanced technology, which may require regular inspections and repairs, increasing maintenance costs.

• Despite higher maintenance needs, MPPT controllers can reduce long-term costs by improving energy efficiency and decreasing battery wear.

System Size

System size plays a crucial role in determining the appropriate controller. A PWM controller operates at battery voltage, which is generally below the maximum power voltage of the solar panel. This type of controller works best for small solar module configurations and is often chosen for portable or entry-level solar lighting systems. For example, a user with a 60W (2x30W) 12V system found a 10A PWM controller adequate for their needs. The low power consumption of the PWM controller makes it ideal for small-scale applications where the benefits of MPPT do not justify the extra cost or complexity.

MPPT controllers excel in medium to large solar lighting systems. They can adjust voltage and current to maximize power output, making them suitable for systems with higher wattage and more complex configurations. For instance, a 900W solar array paired with a 24V battery would require an MPPT controller rated for at least 50A. Models like the Outback Power FlexMax FM60 and Victron SmartSolar 100/50 demonstrate the suitability of MPPT controllers for larger installations. These controllers provide the flexibility and efficiency needed for expanding or upgrading solar lighting systems.

Tip: Choose a PWM controller for small, fixed systems. Select an MPPT controller for medium to large systems or when planning future expansion.

Climate

Climate significantly affects the performance of both PWM and MPPT controllers. The PWM controller performs reliably in hot, sunny climates where the solar panel voltage closely matches the battery voltage. In these conditions, the efficiency gap between PWM and MPPT narrows, making the PWM controller a cost-effective choice.

MPPT controllers show their advantages in variable or cold climates. Solar irradiance, or the amount of sunlight available, directly impacts energy harvesting. In low light conditions, such as cloudy weather or during early and late hours, MPPT controllers maintain higher efficiency by adjusting to the changing environment. Temperature also plays a role. High temperatures can reduce solar panel efficiency and cause controller overheating, requiring effective thermal management. Weather conditions like wind, humidity, and precipitation can lead to dust accumulation on panels and moisture damage to electronic components, affecting controller reliability.

• Solar irradiance affects the amount of sunlight available for energy harvesting; low light conditions such as cloudy weather or early/late hours reduce MPPT efficiency.

• Temperature influences both solar panel voltage and MPPT controller operation; higher temperatures reduce panel efficiency and can cause controller overheating, requiring thermal management.

• Weather conditions like wind, humidity, and precipitation contribute to dust accumulation on panels, reducing efficiency, and moisture can damage electronic components, impacting controller reliability.

For regions with frequent weather changes or colder temperatures, MPPT controllers offer a clear performance advantage.

When to Choose PWM Controller

Best Uses

A PWM controller fits specific solar lighting scenarios. Users often select this controller for small-scale systems, especially those under 200W. These systems include garden lights, pathway illumination, and off-grid micro-solar home setups. The controller works efficiently when the solar panel voltage closely matches the battery voltage. Warm climates further enhance its performance, as the efficiency gap between PWM and MPPT controllers narrows. Many DIY enthusiasts and budget-conscious users prefer this option for its simplicity and cost-effectiveness.

• Small solar lighting systems (typically under 200W)

• Applications where panel voltage matches battery voltage

• Warm, sunny climates

• Budget-friendly or DIY solar projects

• Basic off-grid lighting setups

Pros

The PWM controller offers several advantages for solar lighting applications. Its simple design ensures reliable operation and easy maintenance. Users benefit from affordable pricing, making it accessible for entry-level installations. The controller provides precise control of charging current, which helps protect batteries from overcharging or over-discharging. This feature extends battery life and supports efficient energy use, even when sunlight conditions fluctuate.

• Simple and reliable operation

• Highly affordable for small, low-power systems

• Easy deployment and maintenance

• Precise battery charging management

• Popular choice for basic solar lighting needs

Note: The straightforward design of a PWM controller often leads to higher reliability and lower maintenance requirements.

Cons

Despite its strengths, the PWM controller has limitations. It cannot boost voltage, which restricts compatibility with higher voltage solar panels. The controller shows lower efficiency compared to MPPT controllers, especially in low light or variable temperature conditions. Performance drops on cloudy days or when sunlight is inconsistent. Larger or more complex solar systems require more advanced solutions, as the PWM controller suits only small or simple setups.

• Lower efficiency in low light or variable temperatures

• Inability to boost voltage limits panel compatibility

• Less effective on cloudy days or with inconsistent sunlight

• Not suitable for larger or complex solar lighting systems

When to Choose MPPT

Best Uses

MPPT controllers serve as the preferred choice for medium to large solar lighting systems. These controllers excel in environments with fluctuating sunlight, such as regions with frequent cloud cover, partial shading, or colder climates. System designers often select MPPT technology for commercial solar lighting, off-grid streetlights, and residential setups that require maximum energy harvest. MPPT controllers also support installations where solar panel voltage exceeds battery voltage, enabling flexible system design and future expansion.

• Medium to large solar lighting systems (over 200W)

• Installations in variable or cold climates

• Projects with high-efficiency requirements

• Systems using mismatched panel and battery voltages

• Applications needing scalability or hybrid integration

Pros

MPPT controllers offer several significant advantages for solar lighting applications:

• MPPT controllers continuously track and adjust to the solar panel's optimal power point, maximizing energy output.

• They enhance energy capture even in suboptimal conditions such as partial shading or overcast weather.

• These controllers improve efficiency in low-light conditions by adjusting voltage and current to extract maximum energy.

• MPPT controllers enable optimal and faster battery charging, preventing overcharging and extending battery life.

• They can increase overall system efficiency by up to 30% compared to PWM controllers.

• MPPT controllers contribute to long-term cost savings by reducing wear and maintenance on panels and batteries.

• Their versatility allows compatibility with various solar panel and battery configurations, making them suitable for residential, off-grid, and commercial systems.

Tip: MPPT controllers convert excess voltage from solar panels into usable current, reducing energy waste and enabling more effective battery charging. This feature proves especially valuable in variable conditions and colder climates.

Cons

Despite their benefits, MPPT controllers present some drawbacks:

1. Higher expense and complexity due to additional components and circuitry.

2. Increased heat and noise generation from high-frequency switching, which can impact lifespan and reliability.

3. Reduced performance in very hot or very cloudy conditions where voltage differences are unfavorable, leading to lower efficiency and higher losses.

4. Greater sensitivity to temperature changes, which may affect algorithm performance.

5. More noise generation compared to simpler PWM controllers.

System designers should weigh these factors when selecting a controller for their solar lighting project.

Decision Guide

Checklist

Selecting the right solar charge controller requires careful consideration of several technical and practical factors. System designers and homeowners should review the following checklist before making a decision:

• Confirm that the controller voltage matches the battery system voltage.

• Calculate the required current rating based on solar panel wattage and system voltage, adding a safety margin.

• Assess whether the solar panel voltage is higher than the battery voltage. MPPT controllers deliver greater efficiency when this difference exists.

• Determine the total system size and power requirements. Larger systems benefit from MPPT technology.

• Estimate the efficiency gains. MPPT controllers can provide 10–40% more power under optimal conditions.

• Compare upfront costs and long-term value. PWM controllers offer lower initial costs, while MPPT controllers deliver better energy harvest and scalability.

• Review protection features such as overvoltage, overcurrent, and reverse polarity safeguards.

• Evaluate controller reliability and stability under various environmental conditions.

• Check compatibility with battery types, including newer chemistries like LiFePO4.

• Research brand reputation and user reviews for quality assurance.

Tip: MPPT controllers require the solar panel input voltage to be about 30% higher than the battery voltage, allowing flexible panel choices and maximizing power delivery.

Mistakes to Avoid

Many users encounter problems when selecting a solar charge controller due to common errors. Avoiding these mistakes ensures safe operation and optimal performance:

• Mismatching solar panel voltage and controller voltage can cause controller failure or system inefficiency.

• Overloading the controller by connecting panels that produce more current than the controller’s rating may result in overheating or damage.

• Choosing the wrong controller type for the application leads to wasted energy and poor charging performance.

• Failing to match the controller to the battery type, especially with advanced batteries like LiFePO4, can reduce battery lifespan.

• Neglecting regular system checks and proper sizing increases the risk of costly repairs and downtime.

• Ignoring protection features exposes the system to electrical hazards such as short circuits and fire.

One frequent mistake involves mismatching voltage and current ratings between the solar array and the controller. This oversight can lead to overvoltage damage, reduced efficiency, and shorter battery runtime. Proper matching of all specifications is critical for safe and reliable operation.

Note: Voltage compatibility and correct sizing extend system life and prevent safety risks.

Examples

Real-world applications demonstrate the importance of choosing the right controller for solar lighting systems:

• A homeowner installed a 100W solar panel with a 12V deep-cycle battery and used a PWM controller. The system regulated charging, prevented overcharge, and extended battery life, offering a cost-effective and low-maintenance solution.

• Caravan and RV owners often connect 200W solar panels to 12V batteries. They rely on simple controllers to manage charging, protect against deep discharge, and prolong battery lifespan.

• Small home backup solar systems, such as 12V or 24V battery banks with 300W solar panels, utilize basic controllers to maintain safe charging during power outages. These setups provide reliable lighting without the complexity of advanced controllers.

• Residential users who upgraded to MPPT controllers reported a 25% increase in energy yield, improving battery runtime and system reliability.

• Commercial solar installations adopted MPPT controllers to reduce charging time and enhance operational efficiency.

• Off-grid and remote solar lighting systems use MPPT controllers to maximize energy capture, even under limited sunlight conditions.

• Industry leaders such as Victron Energy’s SmartSolar MPPT and Morningstar TriStar MPPT offer advanced features like Bluetooth connectivity, intelligent charging profiles, and remote management, making them ideal for mission-critical and scalable installations.

Callout: MPPT controllers excel in larger, more complex systems, while simpler controllers remain the preferred choice for basic, budget-limited applications.

Selecting the right solar charge controller depends on system size, budget, and climate. The table below highlights the main differences:

PWM controllers suit small, budget-focused systems in sunny climates. MPPT controllers deliver higher efficiency and adaptability for larger or variable setups. Users should review the decision guide to match their needs with the best controller for reliable solar lighting.

FAQ

What happens if someone uses a PWM controller with high-voltage solar panels?

A PWM controller cannot step down high panel voltage. The system loses excess voltage as heat, which reduces efficiency and may damage components. Always match panel voltage to battery voltage when using PWM controllers.

Can an MPPT controller work with any battery type?

Most MPPT controllers support various battery chemistries, including lead-acid, AGM, gel, and lithium. Users should check the controller’s specifications to confirm compatibility with their chosen battery type.

Is it possible to upgrade from PWM to MPPT without changing the entire system?

Yes. Users can usually swap a PWM controller for an MPPT controller if the new controller matches the system’s voltage and current ratings. This upgrade often improves energy harvest and system flexibility.

Do MPPT controllers require more maintenance than PWM controllers?

MPPT controllers use advanced electronics and may need periodic firmware updates or inspections. However, most require minimal hands-on maintenance. Users should follow manufacturer guidelines for best performance.
