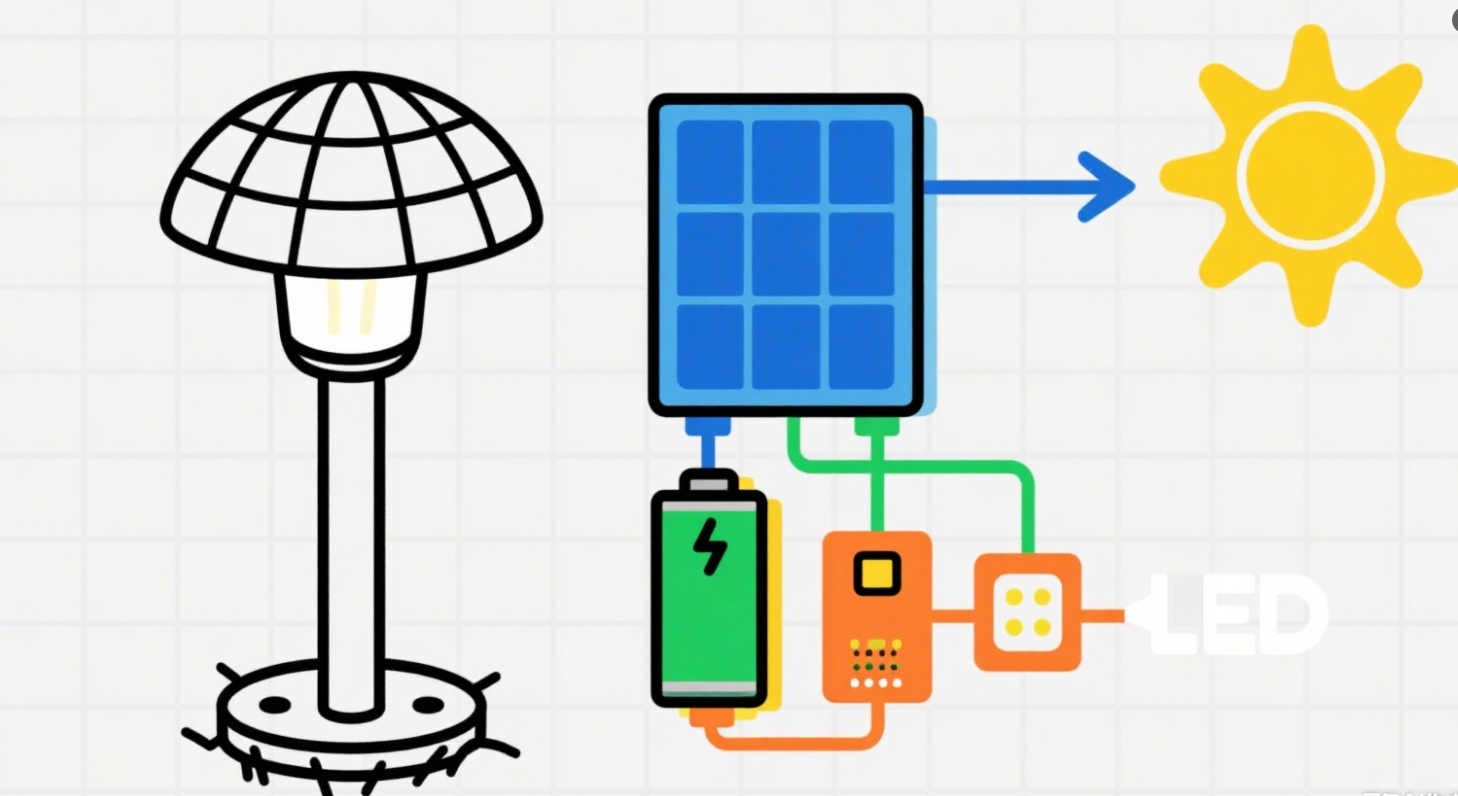

Solar lighting gets energy from the sun to make lights work at night. There is a solar panel that takes in sunlight. A battery keeps the energy safe until it is needed. A controller helps with charging the battery. An LED makes the light shine. A sensor turns the lights on or off. Many people pick solar lighting because it saves money. It works even if the power goes out. It is good for the environment. Urban solar lighting is easy to set up. It has security features. There are many styles for different needs.
· Solar lighting uses sunlight to make electricity. This electricity powers LED lights at night. It saves money and helps the environment.
· The system has solar panels that catch sunlight. Batteries store the energy. Controllers keep the battery safe. Sensors turn the lights on and off. LEDs give bright and efficient light.
· Pick the right battery for your system. Put solar panels where they get direct sunlight. This keeps your lights bright and working all night, even if it is cloudy.
· Automatic sensors turn lights on when it gets dark. They turn lights off when it gets light. This saves energy and makes solar lighting easy to use. You do not need to flip any switches.
· Clean your panels often. Place them in the right spot. Check your system to make sure it works well. This helps your solar lights last longer.

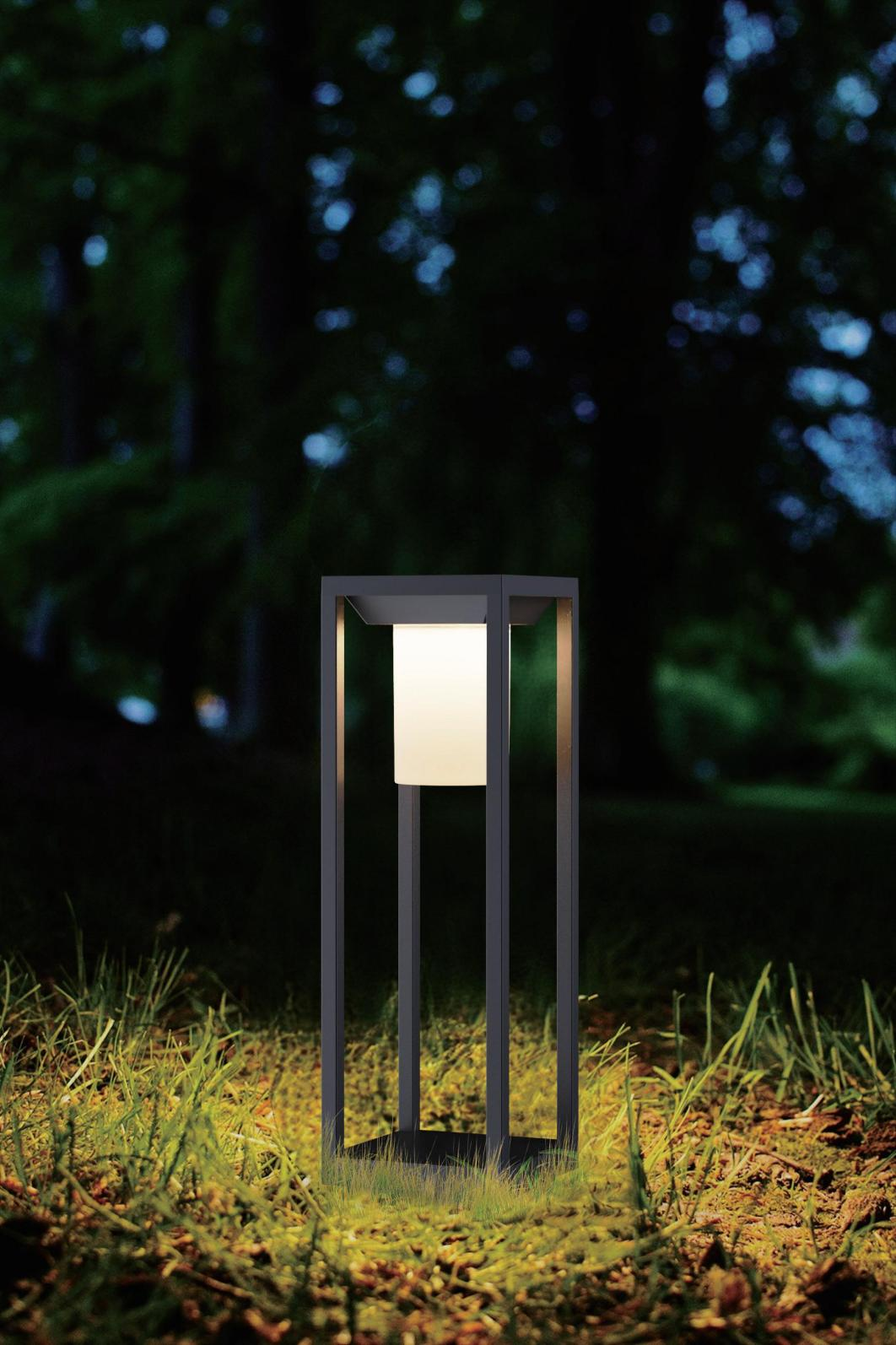

Solar lighting lets you use the sun’s energy for light. You can see it in gardens, streets, and parking lots. This system works without wires or the power grid. You can use solar lighting for outdoor paths and parks. It also works at bus stops and for security at night. Many people pick it because it is eco-friendly. It also helps save money.
Note: Solar lighting systems keep energy from the sun during the day. At night, they use this energy to power LED lights. This helps in places where wires are hard or costly to use.

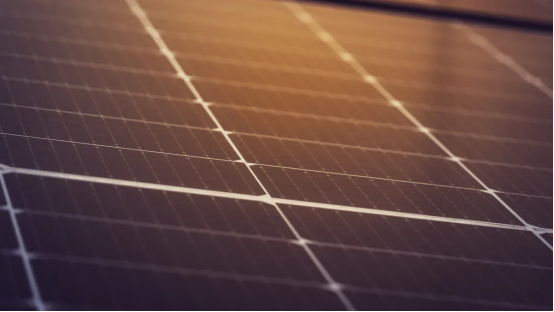

Photovoltaic cells, called PV cells, are very important in solar lighting. These cells catch sunlight and change it into electricity. Most PV cells use silicon as their main material. Silicon is good because it lasts long and works well. Some panels use other materials, but silicon is still the most common.
PV cells are inside the solar panel. The panel also has other parts, like:
· Tempered glass that protects the cells
· Aluminum frames that make it strong
· Encapsulation films that block water and dust
When sunlight hits a PV cell, something special happens. The cell takes in tiny light packets called photons. These photons give energy to electrons in the silicon. The electrons break free and start to move. This movement makes an electric current. The current is direct current (DC). It goes out of the panel and into the rest of the solar lighting system.
The energy conversion starts when sunlight touches the PV cells. The cells turn sunlight into DC electricity. Most solar panels for lighting work at 18% to 24% efficiency. This means only about one-fifth of the sunlight becomes electricity. Monocrystalline panels, made with pure silicon, have the best efficiency.
A normal solar panel for home or garden lighting can make 1 to 2 kilowatt-hours (kWh) each day if it gets enough sun. For example, a 350-watt panel with six hours of sunlight can make about 2.1 kWh. This is enough energy to power several LED lights all night.
Tip: The energy your solar lighting system makes depends on the panel size, sunlight hours, and weather.
You do not need to worry about changing DC to AC for most solar lighting. The system uses DC power to charge the battery and run the LEDs. This keeps things simple and efficient.
Common uses for solar lighting include:
· Street and parking lot lighting
· Garden and pathway lights
· Security lights with motion sensors
· Lighting for parks, airports, and bus stops
· Temporary lighting for construction or military sites
Solar lighting gives you a clean and reliable way to light up spaces. You do not need to use the regular power grid.
Batteries help your lights work after sunset. In the daytime, the solar panel sends electricity to the battery. The battery does not just hold this electricity. It keeps it as chemical energy. Inside a lithium-ion battery, lithium ions move from one side to another. This movement stores the energy. At night, the process goes backward. The battery gives out the stored energy as electricity. This electricity makes your lights turn on.
You can find different rechargeable batteries in these systems. Each type is good and bad in its own way:
· Lithium-ion (Li-ion): It is light and lasts long. It holds a lot of energy but costs more.
· Nickel-Metal Hydride (NiMH): It works well and is safer for nature. It is cheaper but loses charge faster.
· Nickel-Cadmium (NiCd): It works in cold places and is cheap. But it has toxic stuff and stores less energy.
· Lithium Iron Phosphate (LiFePO4): It is very safe and lasts a long time. It is stable but needs special charging and costs more.
Here is a simple comparison:
Battery Type | Energy Density | Cycle Life | Self-Discharge | Environmental Impact | Cost | Temp Range (°C) |
Lithium-ion (Li-ion) | High | Long | Low | Low | High | -20 to 60 |
NiMH | Moderate | Moderate | Higher | Low | Medium | 0 to 45 |
NiCd | Low | Short | Moderate | High (toxic) | Low | -20 to 50 |
Tip: Pick a battery that fits your weather and lighting needs for the best results.
Battery size tells you how long your lights stay on and how bright they are. A bigger battery holds more energy. This helps your lights last all night, even if it was cloudy. If your battery is too small, your lights may go dim or turn off early. If your battery is too big, you might waste money and have battery problems.
Most solar lights use batteries from 20Ah to 200Ah. The right size depends on how much power your lights use and how long you want them to run. If you live where there is less sun, you need a bigger battery for cloudy days.
Remember: The right battery size gives you bright, steady light every night and keeps your system working well.

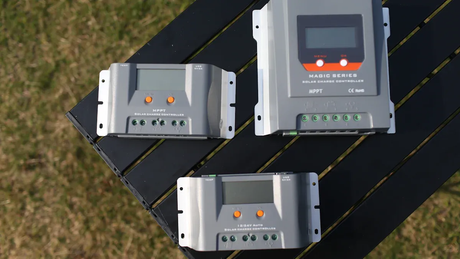

A charge controller acts as the brain of your solar lighting system. You need it to manage how electricity moves between the solar panel and the battery. The controller keeps your battery safe and healthy. It stops the battery from getting too much charge, which can cause overheating or shorten its life. When the battery is full, the controller cuts off or reduces the charging current. This action prevents damage and helps your battery last longer.
You also get protection from deep discharge. If your battery voltage drops too low, the controller disconnects the lights. This step keeps your battery from draining too much, which can ruin it. The controller also blocks electricity from flowing backward at night, so your battery does not lose power. Some controllers use multi-stage charging. They fill the battery quickly at first, then slow down to avoid stress. Many controllers adjust charging based on temperature, which helps in hot or cold weather.
Here is a quick look at what a charge controller does:
Function | What It Does |
Overcharge Protection | Stops charging when battery is full |
Over-discharge Protection | Turns off lights if battery is too low |
Reverse Current Block | Stops power from flowing back at night |
Temperature Compensation | Adjusts charging for hot or cold conditions |
Load Control | Disconnects lights to protect battery |
Tip: Using the right charge controller helps your system work well for many years.
A light sensor lets your lights turn on and off by themselves. You do not need to flip a switch. The most common type is the Light Dependent Resistor (LDR). This sensor changes its resistance when light hits it. During the day, sunlight keeps the resistance low, so the lights stay off. When it gets dark, the resistance goes up. The sensor then tells the controller to turn the lights on.
Other sensors, like photodiodes and phototransistors, also detect light. They work by creating an electric current when light shines on them. Some systems use advanced sensors that can adjust how bright the lights are, depending on how dark it is outside.
A dusk-to-dawn sensor makes your lighting automatic. At sunset, the sensor notices less light and turns the lights on. At sunrise, it senses more light and switches them off. This feature saves energy and gives you light only when you need it.
LEDs, or light-emitting diodes, are the main source of light in most modern solar lights. When you turn on an LED, it uses stored energy from the battery. The process is called electroluminescence. Here’s what happens: electric current flows through the LED’s semiconductor material. Electrons move and meet tiny gaps called holes. When they combine, they release energy as photons. You see these photons as visible light.
LEDs work at a low voltage, usually around 0.1 volts, and use a small current, about 20 milliamps. Special circuits or resistors keep the voltage and current at safe levels. This helps your LEDs last longer and shine brighter. If LEDs get too hot, they lose brightness and may break. Good temperature control keeps them working well.
Note: LEDs use much less energy than old-style bulbs. They turn most of the electricity into light, not heat.
You can see how LEDs compare to traditional bulbs in this table:
Light Bulb Type | Energy Efficiency (%) | Energy Lost as Heat (%) |
LED | 10-20 | |
Incandescent | 20 | 80 |
Your solar lights turn on and off by themselves. A sensor checks how much light is outside. When it gets dark, the sensor tells the controller to send power from the battery to the LEDs. At sunrise, the sensor switches the lights off. This automatic process saves energy and makes sure you have light only when you need it.
Some systems use motion sensors. These sensors turn the lights on when someone walks by and off when no one is there. This feature can save even more energy. Studies show that automatic controls can cut lighting energy use by 20% to 35%. If you add daylight sensors, you can save up to 60%. You get bright, reliable light without wasting power.
Tip: Automatic LED lights are smart and efficient. You do not need to worry about turning them on or off.
Sunlight intensity plays a big role in how well your solar lighting works. When you place your solar panel in direct sunlight, it charges faster and gives you more power. The current from the panel increases as the sunlight gets stronger. This means your battery fills up quicker and your lights shine longer at night. If you put your panel in the shade or behind glass, it will not charge as well.
Weather also affects performance. On cloudy or rainy days, your solar panels still work, but they make less energy. You might notice your lights do not stay on as long. The table below shows how different cloud levels change how much energy your panel makes:
Cloud Cover Level | Solar Panel Efficiency (%) | Explanation |
Light Cloud Cover | 80% - 90% | Light clouds let most sunlight through. |
Moderate Cloud Cover | 50% - 60% | Thicker clouds block more sunlight. |
Heavy Cloud Cover | 10% - 25% | Dense clouds block most sunlight. |
Rain can help by washing dust off your panels, making them work better after the storm.
The time of year changes how much sunlight your solar lighting system gets. In summer, you get longer days and more sunlight. Your panels charge more, and your lights stay bright for longer. In winter, days are shorter and the sun is lower in the sky. Your system gets less energy, so your lights may not last as long at night. Solar lighting systems use sensors to turn on and off with the changing daylight. You do not need to adjust anything. To get the best results all year, keep your panels clean and make sure nothing blocks the sun.
You can do a few simple things to keep your solar lighting working well:
· Place your solar panels facing south if you live in the Northern Hemisphere. This gives you the most sunlight.
· Tilt your panels to match your location’s latitude. Adjust the tilt in winter for better sun capture.
· Keep panels away from shade caused by trees or buildings.
· Clean your panels with a soft cloth and water every few months.
· Check batteries and wires for damage or corrosion.
· Trim plants that might block sunlight.
· Use high-quality parts for longer life and better performance.
Regular care and smart placement help your solar lighting shine bright every night.
You can understand how solar lighting works by following these steps: First, solar panels take in sunlight and make electricity. Next, the charge controller controls the energy and keeps the battery safe. The battery saves the energy for when it gets dark. When the sun goes down, sensors tell the LED to turn on and light up your area.
Component | What It Does in Solar Lighting |
Solar Panel | Changes sunlight into electricity |
Battery | Holds energy for use at night |
Controller | Controls charging and keeps the battery safe |
LED | Gives off bright and efficient light |
Sensor | Turns lights on or off based on how much light there is |
Pick good parts, put panels where they get lots of sun, and clean them often. Check your system often to stop problems and make sure your solar lights work well all year.
