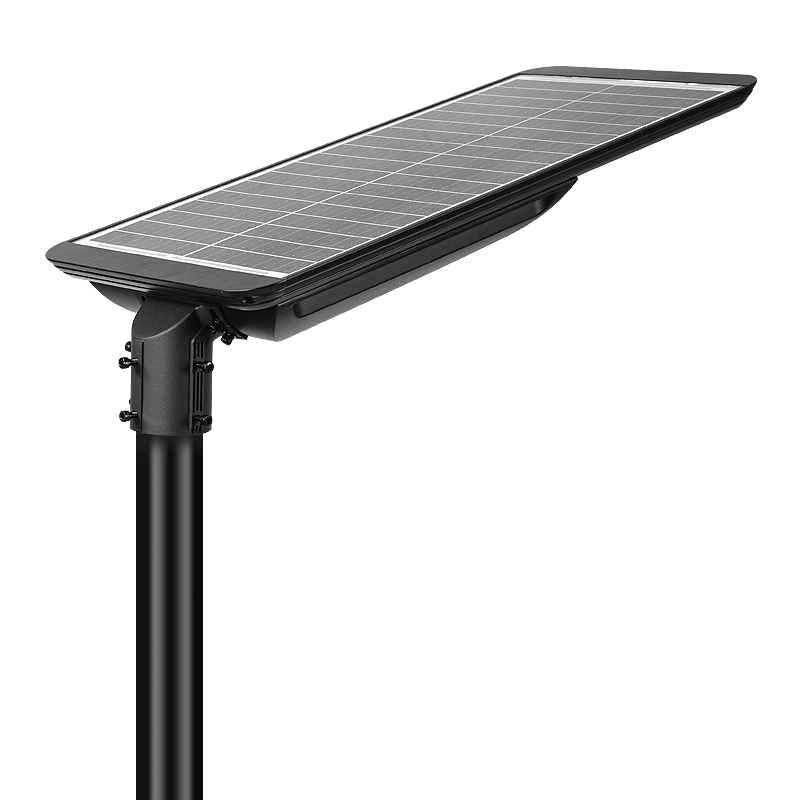

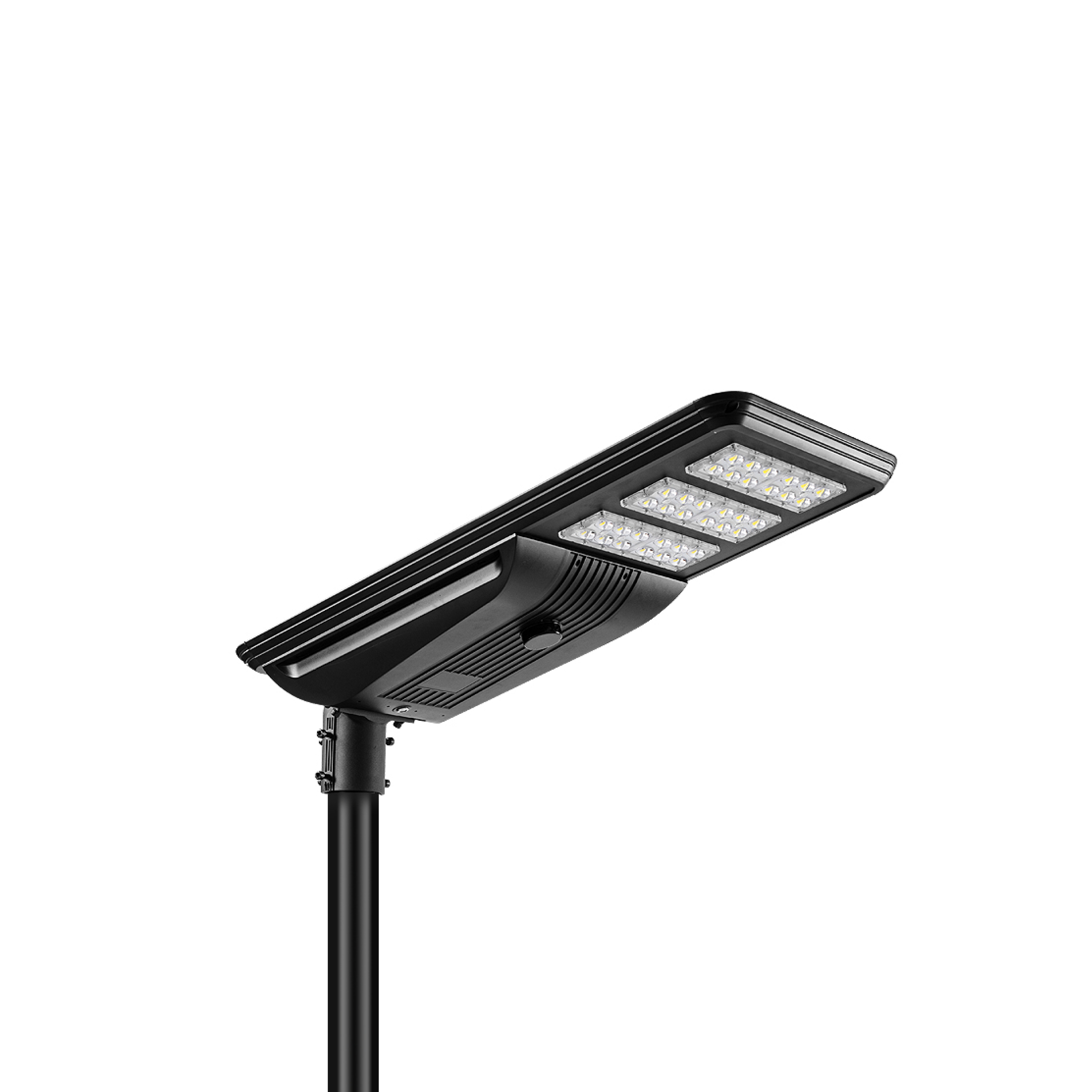

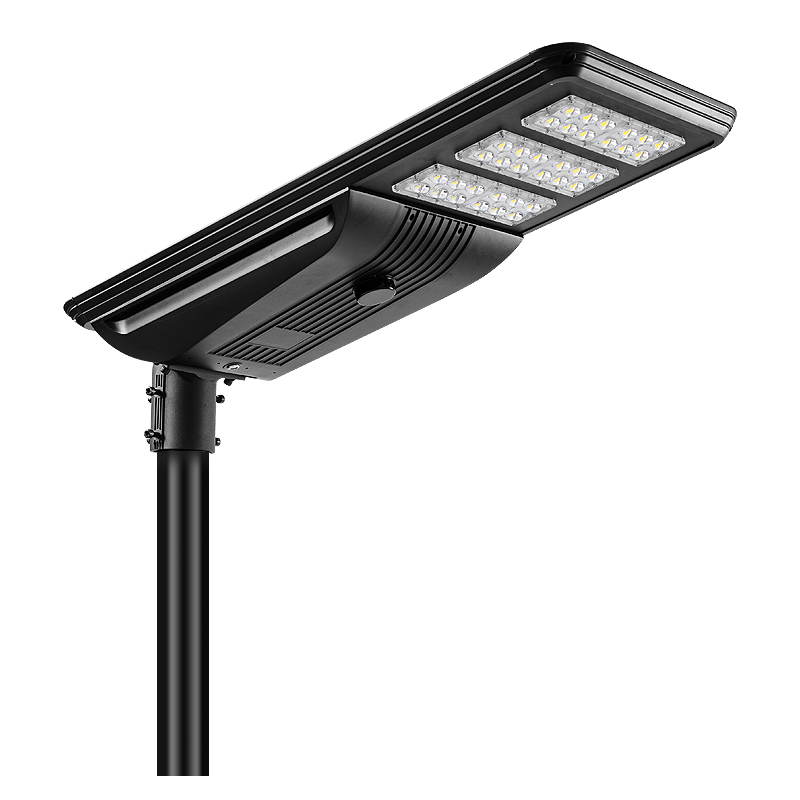

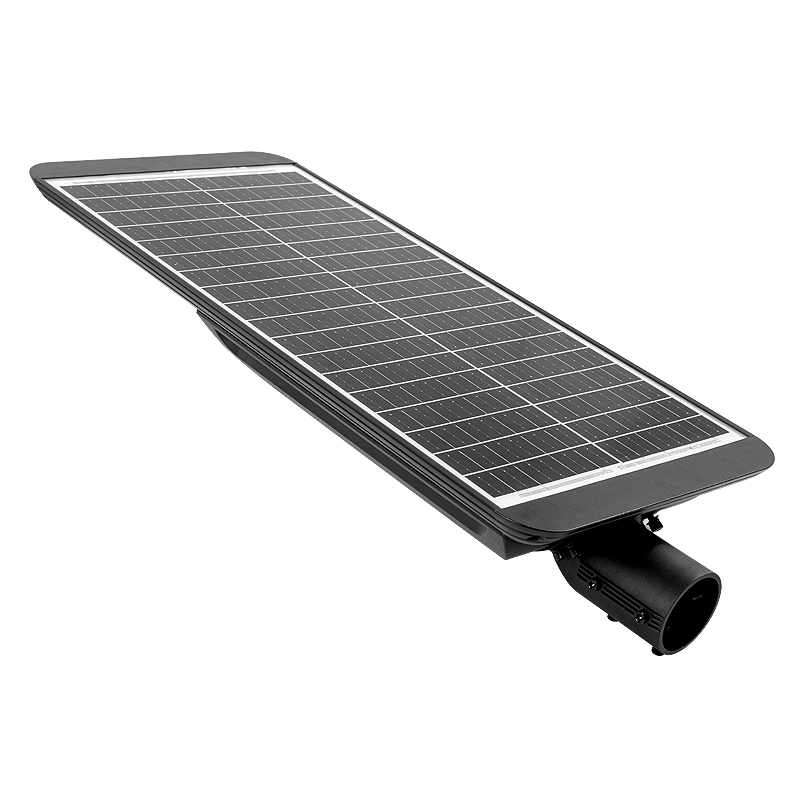

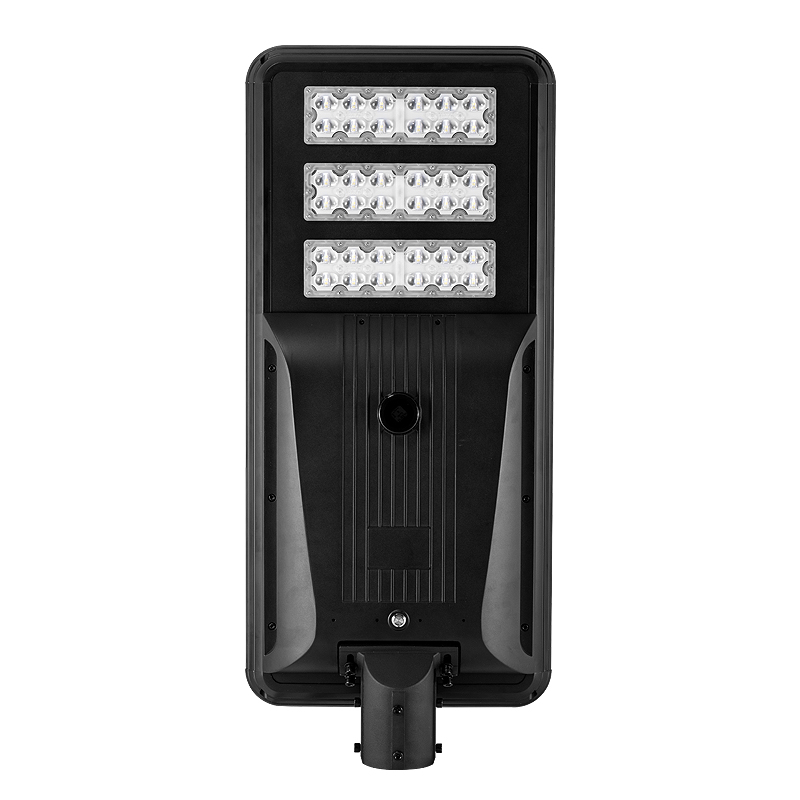

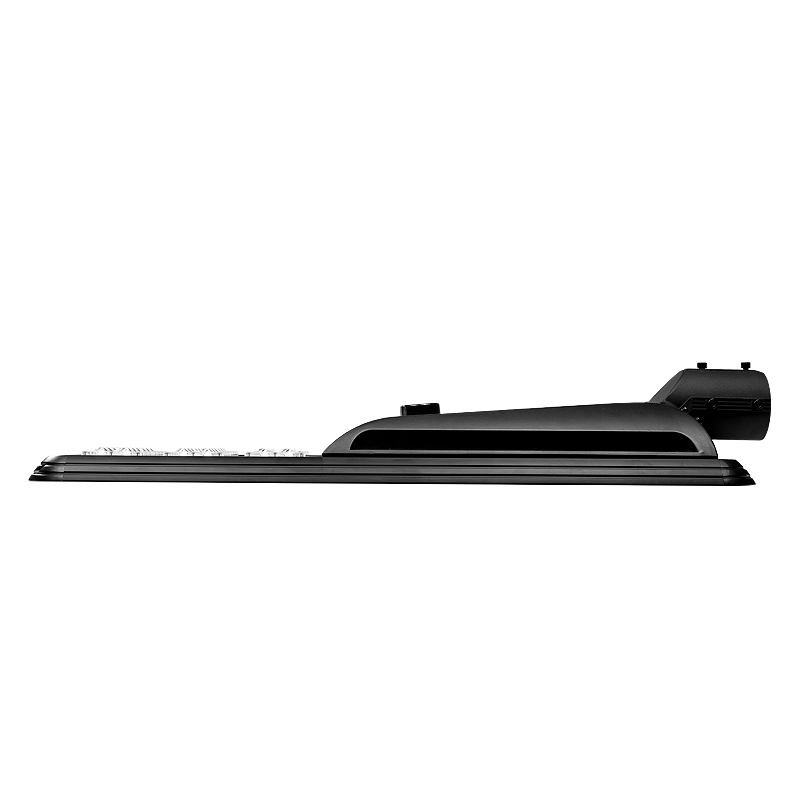

Rice Solar's ALL-IN-ONE Solar Street Light is a comprehensive solution made in China, featuring a high-efficiency monocrystalline solar PV module, a lithium iron phosphate battery with an integrated battery management system (BMS), a high-efficacy LED light, a MPPT solar charge controller, and an aluminum extruded body. This ALL-IN-ONE SSL system is specially designed with a microwave motion sensor that automatically controls the dimming and brightness of the light, which significantly increases the backup time and makes it an ideal choice for lighting applications in remote and off-grid areas. The integration of these advanced components into a single, self-contained unit allows for efficient utilization of solar energy, reduced maintenance requirements, and cost-effective deployment, making it the go-to solution for lighting needs in regions without access to the electrical grid.
Specification
Model
RL-LKL-40W
Dimension
933*408*150mm
Net Weight
11.5KG
Fixture Color
Black / Gray
Material
Aluminum die-cast+PMMA
LED Source
4 cores high efficiency SMD3030 144pcs
Practical LED Power
40W
CCT
3000K/4000K/6000K/Customize
Lumen Output
170LM/W
Battery Capacity
3.2V 100AH (320Wh)
Mono Solar Panel
18V 60W
Controller
MPPT
Sensor
Microwave motion sensor
Cloud Platform System Management
Iot Control management system(optional)
Light Angle
75*155° / transmittance: >95%
Working Mode
Microwave induction + segmentation time control + intelligent control
Discharge Time
3-5 rainy days
Installation Height Recommended
4-6m
Warranty
3 Years
Model
RL-LKL-40W
Dimension
933*408*150mm
Net Weight
11.5KG
Fixture Color
Black / Gray
Material
Aluminum die-cast+PMMA
LED Source
4 cores high efficiency SMD3030 144pcs
Practical LED Power
40W
CCT
3000K/4000K/6000K/Customize
Lumen Output
170LM/W
Battery Capacity
3.2V 100AH (320Wh)
Mono Solar Panel
18V 60W
Controller
MPPT
Sensor
Microwave motion sensor
Cloud Platform System Management
Iot Control management system(optional)
Light Angle
75*155° / transmittance: >95%
Working Mode
Microwave induction + segmentation time control + intelligent control
