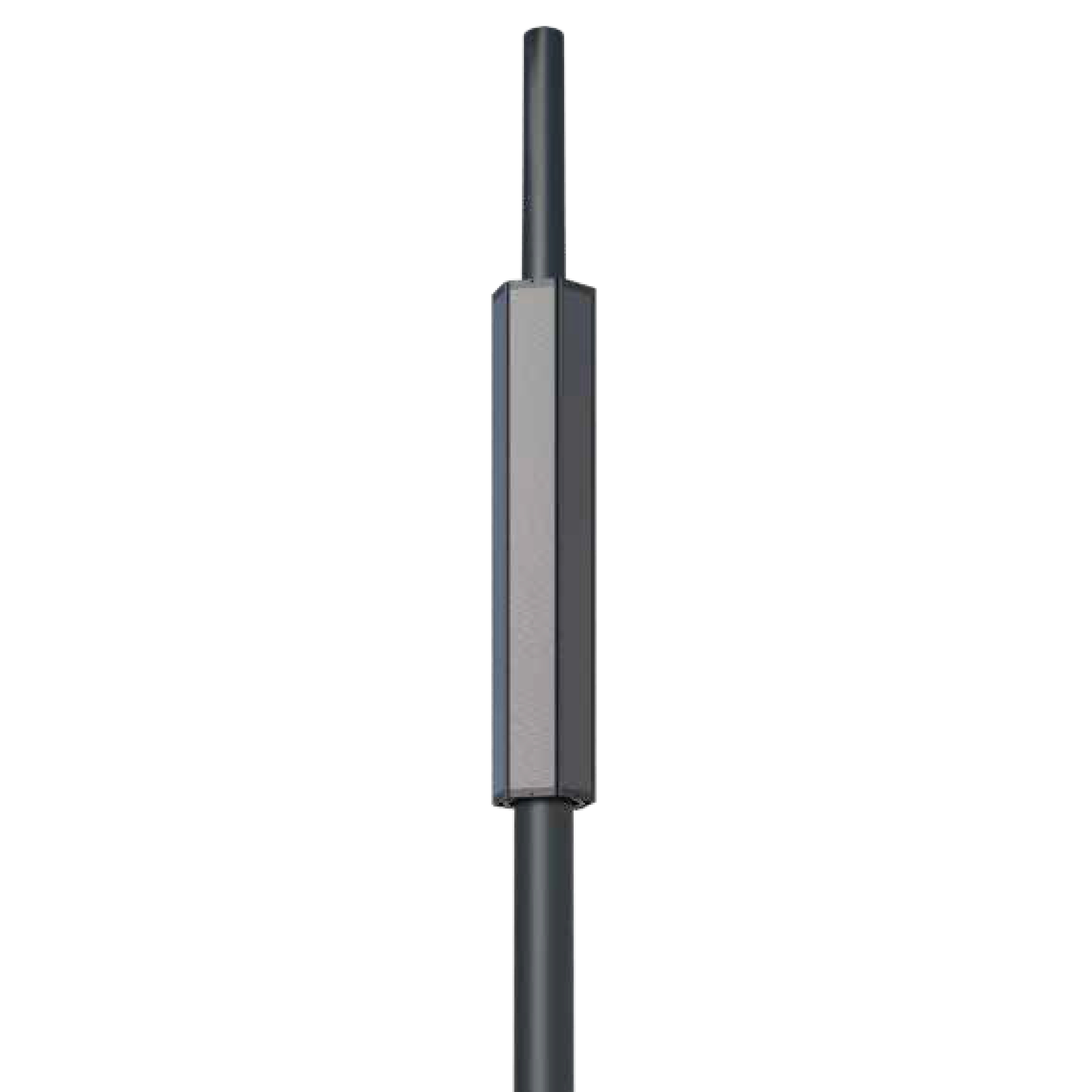

Vertical Solar Hexagonal Module 100W

Features
●High-efficiency monocrystalline silicon cells.
●Shingled packaging technology for increased light capture and reduced line loss

●Strong, impact-resistant aluminum alloy frame.

●Power tolerance range of -2.99% to +2.99%.

●Can withstand wind loads up to 2400 Pascal and snow loads up to 5400 Pascal.

●Effective power generation even under low-light conditions.

Product Description

Model	ST-PV100
Body Material	Aluminum
Peak Power(Pmax)	98~110W
Peak Voltage(Vmp)	18~21.68V
Open Circuit Voltage(Voc)	21.68V
Peak Current(lmp)	5.56A
Short Circuit Current(Isc)	5.9A
Cell Conversion Efficiency	>24.16%
System Voltage	1000V DC(IEC)/1500V DC(UL)
Maximum Rated Fuse Current	11.8A
Solar Cell	Monocrystalline Silicon 105x26
Cell Quantity	216(36S 6P)
Dimension	Ø265*910mm
Weight	8KG
Backplane	TPT Backplane
Glass	3.2Cloth Super White Tempered Glass
EVA	High light transmittance,anti-oxdation ,anti-corrosion,UV resistance
TPE(black)	High temperature resistance,fatigue resistance creep resistance,impact resistance
Install Dimension	Ø60mm~Ø168mm
