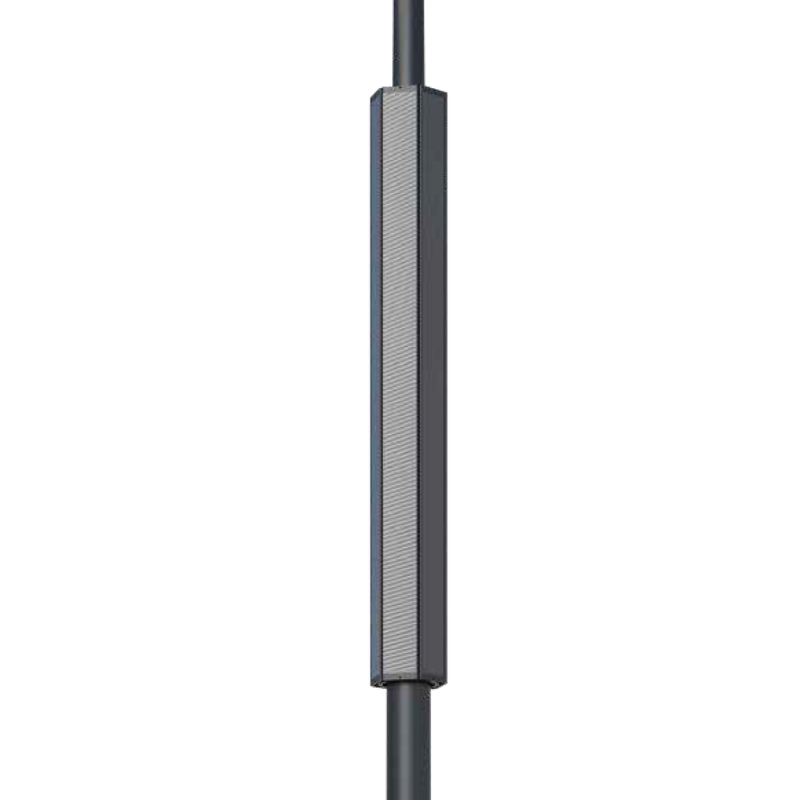

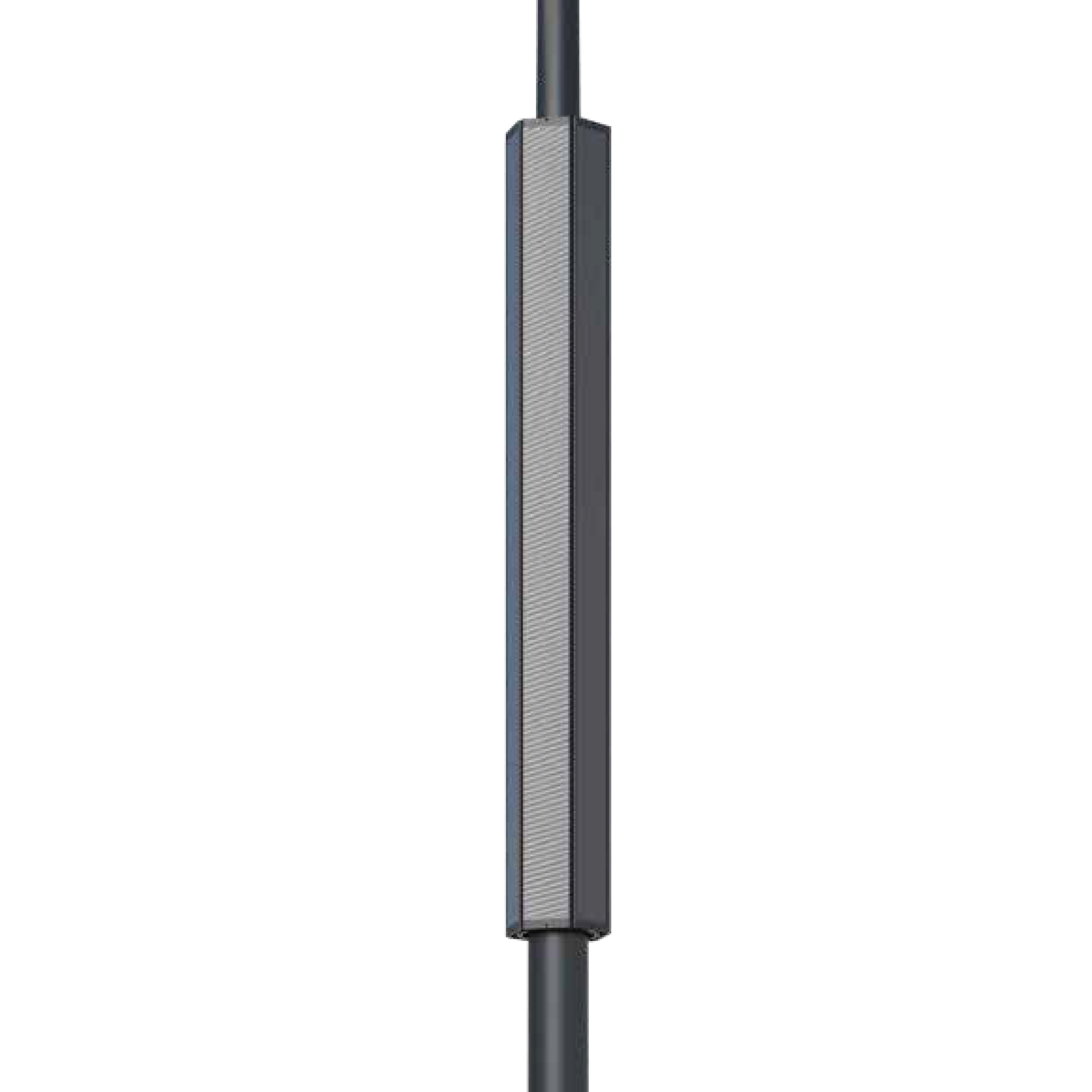

Vertical Solar Hexagonal Module 160W

Features
●High-efficiency monocrystalline silicon cells.
●Shingled packaging technology for increased light capture and reduced line loss

●Strong, impact-resistant aluminum alloy frame.

●Power tolerance range of -2.99% to +2.99%.

●Can withstand wind loads up to 2400 Pascal and snow loads up to 5400 Pascal.

●Effective power generation even under low-light conditions.

Product Description

Model	ST-PV160
Body Material	Aluminum
Peak Power(Pmax)	155~165W
Peak Voltage(Vmp)	23.94~26.46V
Open Circuit Voltage(Voc)	26.46V
Peak Current(lmp)	7.6A
Short Circuit Current(Isc)	8A
Cell Conversion Efficiency	>24.16%
System Voltage	1000V DC(IEC)/1500V DC(UL)
Maximum Rated Fuse Current	16A
Solar Cell	Monocrystalline Silicon 105x32
Cell Quantity	252(42S 6P)
Dimension	Ø265*1350mm
Weight	11KG
Backplane	TPT Backplane
Glass	3.2Cloth Super White Tempered Glass
EVA	High light transmittance,anti-oxdation ,anti-corrosion,UV resistance
TPE(black)	High temperature resistance,fatigue resistance creep resistance,impact resistance
Install Dimension	Ø60mm~Ø168mm
