Views: 0 Author: @Rice Solar Lighting Publish Time: 2025-07-23 Origin: www.ricesolar.com
When you select a pole height for a solar street light, use these quick tips:
· Highways and main roads need poles between 10 and 12 meters for broad, safe coverage.
· Smaller roads or parking lots work best with poles around 6 to 8 meters.
· Residential gardens and pathways require lower poles, about 3 to 4 meters, for focused lighting.

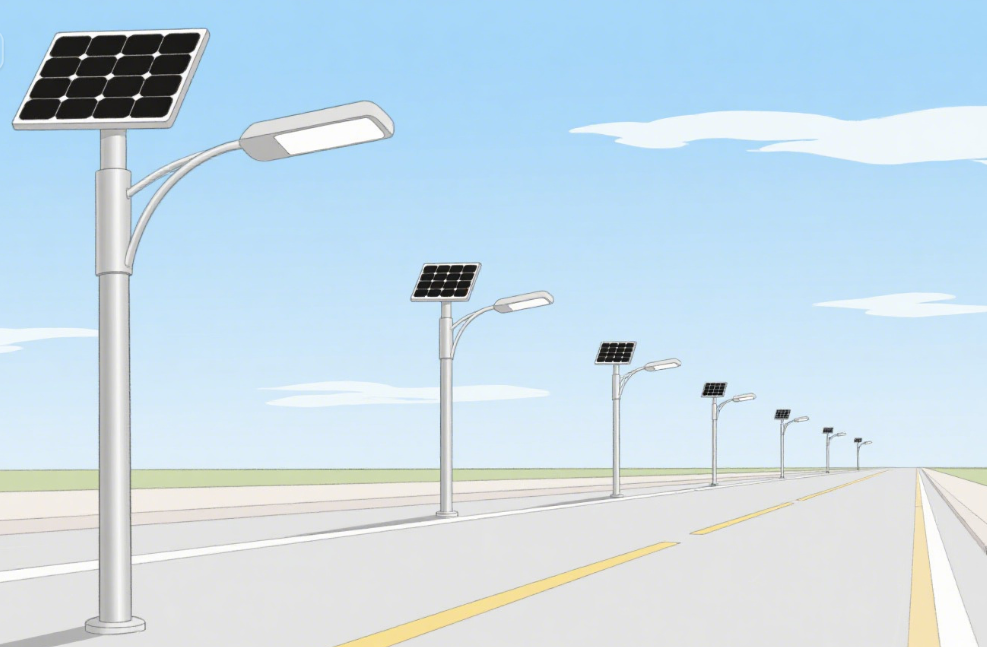

· For an urban solar street light, choose a higher pole if you use a wide beam angle or a lower pole for a narrow beam angle.
· Match pole height to road width: wider roads need taller poles for even light coverage and safety.
· Choose pole height based on beam angle: wide beams work best with tall poles, narrow beams with shorter poles.
· Use the formula pole height ≥ half the road width to ensure proper lighting and avoid dark spots.
· Select pole material and thickness carefully to ensure strength, durability, and wind resistance.
· Balance lighting needs with maintenance and environmental impact by choosing the right pole height.
When you choose a pole height, start by measuring the width of the road or area you want to light. Wider roads need taller poles to spread light evenly and avoid dark spots. Urban planning guidelines show a clear link between road width and recommended pole height.
Road Width / Street Typology | Recommended Pole Height (meters) |
Narrow streets (residential, commercial, historical contexts) | 8–10 |
Wider streets (commercial or industrial areas) | 10–12 |
Tip: For best results, space poles 2.5 to 3 times the pole height apart. The light cone diameter usually matches the pole height, so taller poles cover larger areas.
The beam angle of your solar street light affects how far and wide the light spreads. You should match the beam angle to the pole height for efficient coverage.
· Wide beam angles work best with higher poles (10 to 12 meters). These setups suit plazas or industrial parks where you need broad, even lighting.
· Narrow beam angles fit lower poles (6 to 8 meters). Use these for focused lighting on statues or small areas.
· Higher poles with wide beam angles prevent glare and ensure even light distribution.
The size of the area you want to illuminate helps determine the optimal pole height. Use this simple rule: the pole height should be at least half the radius of the lighting area.

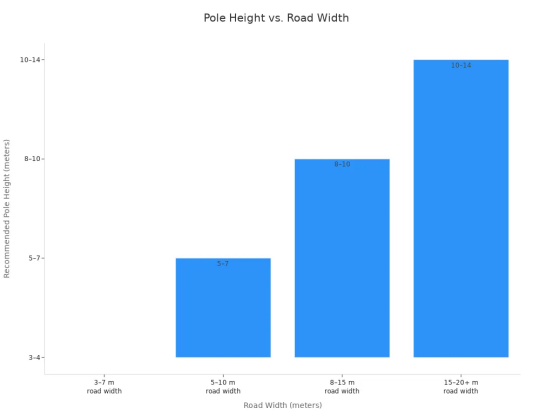

Road Width (meters) | Recommended Pole Height (meters) |
3–7 | 3–4 |
5–10 | 5–7 |
8–15 | 8–10 |
15–20+ | 10–14 |
Note: For pedestrian crossings, place poles at a distance from the crossing equal to the pole height. This setup improves visibility and safety.
The intended use of the area also guides your pole height choice. Residential and rural areas need shorter poles to reduce glare and save energy. Urban streets and commercial zones require medium-height poles for more coverage. Highways and major roads need the tallest poles for safety at higher speeds.
Usage Type | Recommended Pole Height (meters) | Illumination Coverage (meters) | Purpose / Notes |
Residential & Rural Areas | 4 to 8 | 10 to 15 | Lower poles minimize glare and light pollution |
Urban Streets & Commercial | 8 to 12 | 15 to 30 | Medium poles suit higher traffic and larger areas |
Highways & Major Roadways | 12 to 18 | 30 to 50 | Tall poles provide wide coverage and safety for fast-moving vehicles |
Bridges, Intersections, Tunnels | 10 to 15 | Varies | Specialized lighting for complex or high-traffic areas |
Choosing the right pole height for your solar street light depends on the area you want to illuminate. You can use typical height ranges as a starting point. These ranges help you match the pole to the lighting needs of different environments.
Application Area | Recommended Pole Height Range |
Garden Paths & Residential Areas | 3 to 4 meters (or 0.9 to 2.1 meters for decorative lights) |
Parking Lots & Smaller Roads | 6 to 8 meters |
Urban Streets & Highways | 10 to 12 meters |
You will find that most garden paths and residential areas use poles between 3 and 4 meters. Parking lots and smaller roads often require poles from 6 to 8 meters. For urban streets and highways, you should select poles between 10 and 12 meters. Taller poles provide broader coverage and higher illumination, which is essential for busy or wide roads.
Tip: For high-intensity lighting, such as highways or industrial areas, you may need poles above 12 meters. These poles often use steel or fiberglass for extra strength.
You should always consider the specific scenario when selecting a solar street light pole height. Different locations have unique requirements for safety, aesthetics, and coverage.
· Residential areas, gardens, and pathways: Use lower poles (3–4 meters) to create soft, localized lighting and reduce glare.
· Suburban streets and commercial zones: Medium poles (4.6–7.6 meters) balance wide coverage with light pollution control.
· Urban streets and city roads: Poles between 8 and 10 meters suit busy areas and provide uniform illumination.
· Highways, airports, and major roads: Tall poles (10–14 meters or more) ensure large area coverage and high brightness.
· Parks, scenic areas, and bus stops: Choose pole heights based on the size of the area and the desired lighting effect. For example, a park may use 7-meter poles for pedestrian-friendly lighting.
Area Type | Pole Height (meters) | Typical Use Case |
Rural Roads | 5–7 | Low-traffic roads, villages |
Suburban Streets | 4.5–7.6 | Balance of function and design |
Urban Streets | 8–10 | City roads, commercial areas |
Highways | 10–14 | High-traffic, wide roads |
Note: The pole height you choose for your solar street light should match both the width of the road and the lighting needs of the area. Larger spaces and higher traffic demand taller poles.
Lighting engineers use simple formulas to help you determine the best pole height for your solar street light. The most common method links pole height to the width of the area you want to light.
A basic formula you can use is:
Pole Height (H) ≥ 0.5 × Road Width (R)
For example, if your road is 8 meters wide, you should choose a pole at least 4 meters tall. This formula ensures that the light covers the area evenly and reduces dark spots.
You should also consider the beam angle of your solar street light. A wider beam angle allows you to use a taller pole for broader coverage. If you use a narrow beam angle, a lower pole will focus the light more effectively.
Pro Tip: Always check local regulations and standards before finalizing your pole height. Environmental factors like wind, snow, and obstacles can also affect your choice.
Real-world projects often combine these formulas with practical experience. For instance, a village might use 6-meter poles on 5-meter-wide roads, spaced 20 meters apart, with 40W LED solar street lights. This setup provides safe and efficient lighting for both vehicles and pedestrians.
When you choose a solar street light pole, you need to consider the material. The material affects the pole’s strength, durability, and maximum safe height.
· Q235 and Q245 steel poles are common. These poles are usually galvanized to prevent rust. Steel offers strong support and works well for taller poles.
· Stainless steel and anodized aluminum resist corrosion better than regular steel. You might pick these for coastal or industrial areas, but they cost more.
· Aluminum poles are lightweight and rust-proof. They suit eco-friendly projects and places with salty air.
· Concrete poles can handle extreme weather, like hurricanes, but you rarely see them in standard solar street lighting.
The wall thickness and diameter matter, too. Taller poles need thicker walls and wider diameters to stay safe and stable. For example, a 3–4 meter pole often uses a 2.5 mm wall, while a 10–12 meter pole may need a 4 mm wall. Galvanization methods, such as hot-dip, improve corrosion resistance and extend the pole’s lifespan.
Pole Material | Durability & Lifespan Impact | Recommended Heights & Use Cases | Cost & Maintenance Considerations |
Q235B Steel + Hot-Dip Galvanizing | Strong, corrosion-resistant, lasts 20+ years. | 4–12 meters; thickness increases with height. | Cost-effective, needs proper coating for longevity. |
Stainless Steel | Highly corrosion-resistant, best for harsh environments. | 4–6 meters, decorative or coastal use. | More expensive, chosen for looks or corrosion resistance. |
Cold Galvanized Steel | Poor corrosion resistance, rusts quickly in harsh areas. | Not recommended for windy or corrosive sites. | Cheaper upfront, but higher long-term costs. |
You must make sure your pole can handle local wind conditions. Wind resistance depends on pole height, material, wall thickness, and foundation design.
· Taller poles face stronger wind forces. You need thicker walls and larger diameters for stability.
· Hot-dip galvanizing with at least 85 microns of coating protects against corrosion and wind damage.
· Round and tapered poles resist wind better than square or straight poles.
· Design wind speed should exceed 35 meters per second. Seismic resistance should be above Level 8.
· In windy regions, use deeper foundations and high-strength bolts. Local wind speed data helps you choose the right structural specs.
Tip: Always check that your pole’s wind resistance is 15–20% higher than the maximum local wind speed.
Maintenance becomes more challenging as pole height increases.
· Taller poles need stronger foundations and sturdier materials, which raises costs.
· You will find it harder to access and repair lights on tall poles. Special equipment or lifts may be required.
· Over-illumination from high poles can cause light pollution, affecting wildlife and nearby residents.
Shorter poles are easier to maintain and repair. They also reduce the risk of light pollution. When you plan your project, balance lighting needs with maintenance and environmental impact.
Selecting the right pole height for a solar street light involves matching road width, beam angle, and application type. Use the table below as a quick reference:
Road Width | Pole Height | Lamp Power | Notes |
5–8 m (narrow) | 5–7 m | 30–60 W | Single side lighting |
8–12 m (medium) | 8–10 m | 60–100 W | Double side lighting |
>12 m (wide) | 10–12 m | 100–120 W | Central or double side light |
For complex projects, consult lighting professionals or use online resources for tailored solutions.
