This product is no longer available

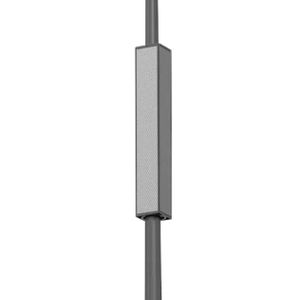

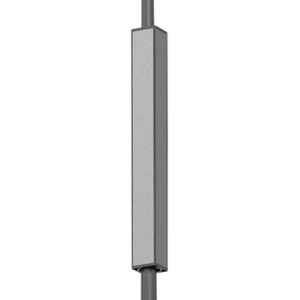

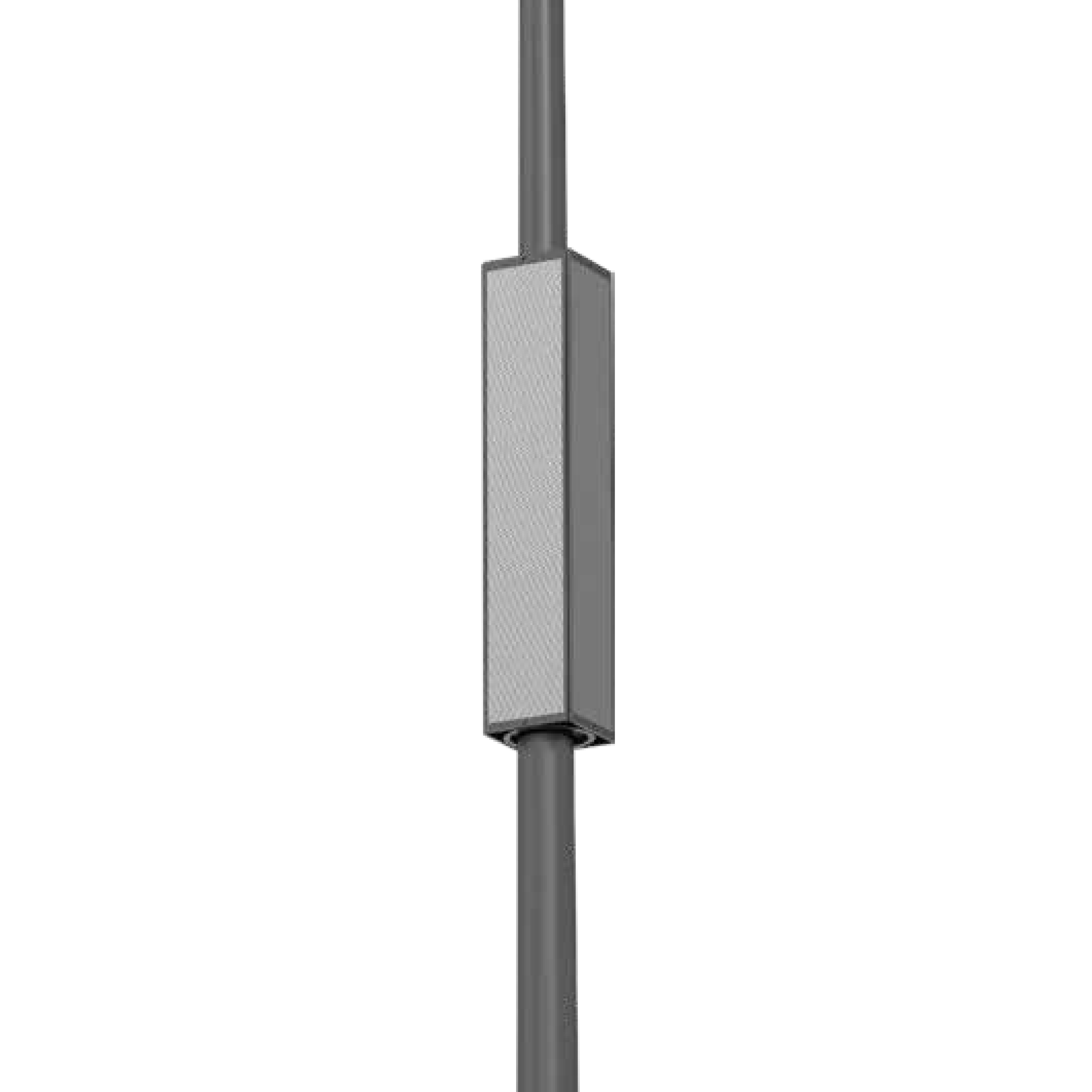

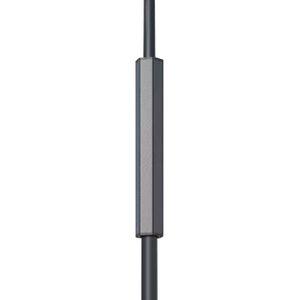

Vertical Solar Square Module 120W

Availability:

Features
●High-efficiency monocrystalline silicon cells.
●Shingled packaging technology for increased light capture and reduced line loss

●Strong, impact-resistant aluminum alloy frame.

●Power tolerance range of -2.99% to +2.99%.

●Can withstand wind loads up to 2400 Pascal and snow loads up to 5400 Pascal.

●Effective power generation even under low-light conditions.

Product Description

Model	ST-PV120
Body Material	Aluminum
Peak Power(Pmax)	118~125W
Peak Voltage(Vmp)	23.94~26.46V
Open Circuit Voltage(Voc)	26.46V
Peak Current(lmp)	5.7A
Short Circuit Current(Isc)	6.05A
Cell Conversion Efficiency	>24.16%
System Voltage	1000V DC(IEC)/1500V DC(UL)
Maximum Rated Fuse Current	12.1A
Solar Cell	Monocrystalline Silicon 105x26
Cell Quantity	168(42S 4P)

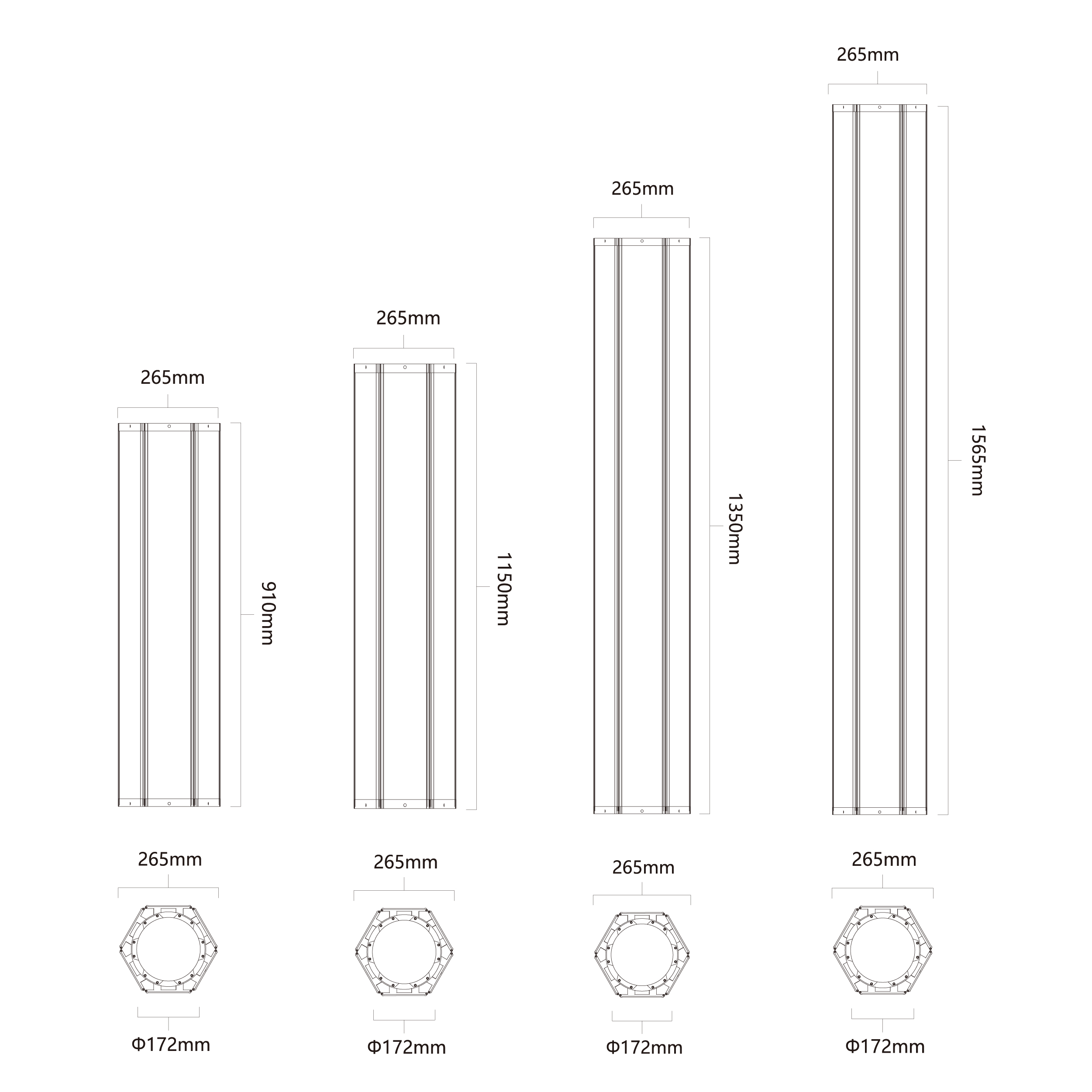

Dimension	2222221150mm
Weight	9.3KG
Backplane	TPT Backplane
Glass	3.2Cloth Super White Tempered Glass
EVA	High light transmittance,anti-oxdation ,anti-corrosion,UV resistance
TPE(black)	High temperature resistance,fatigue resistance creep resistance,impact resistance
Install Dimension	Ø60mm~Ø168mm
